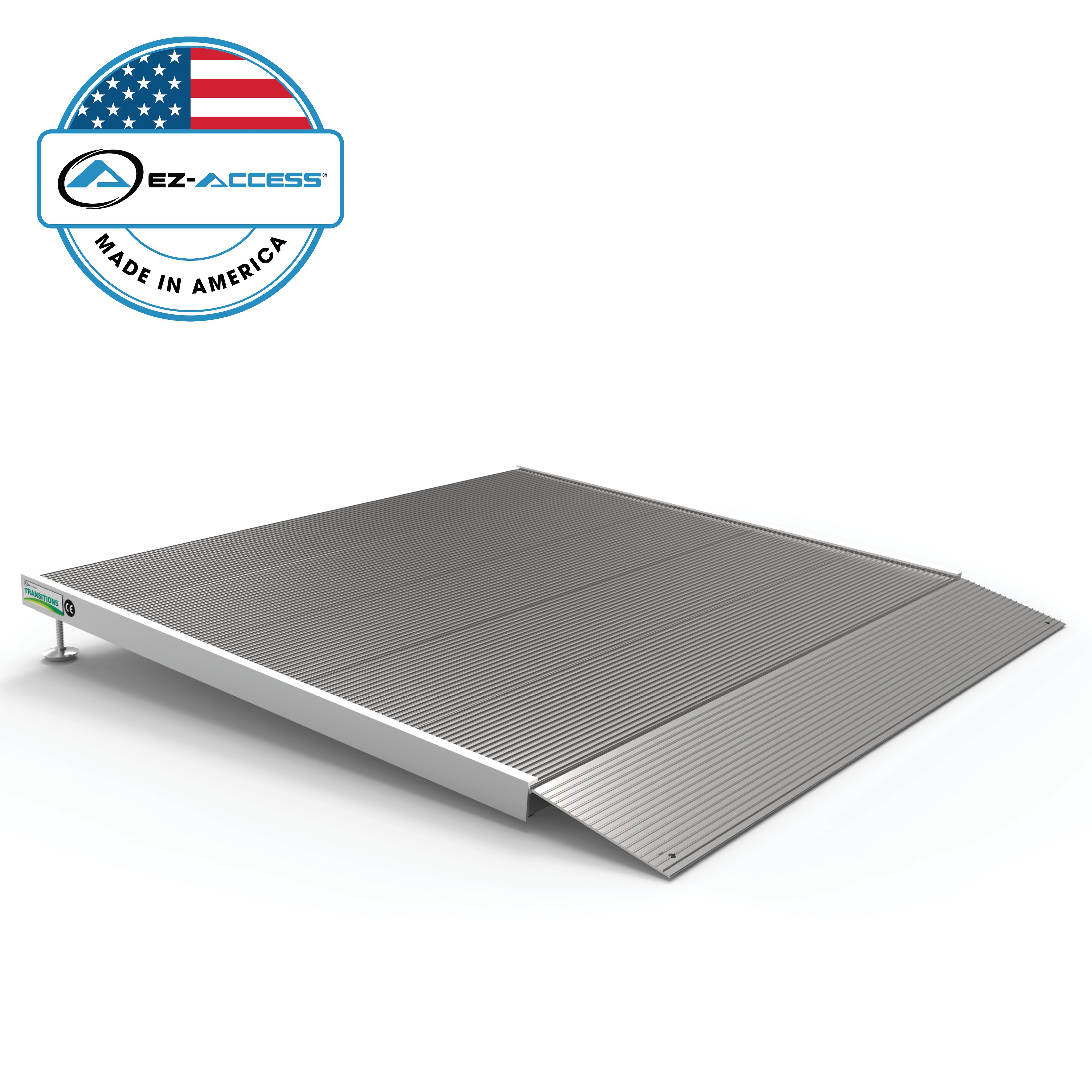

The TRANSITIONS® Angled Entry Ramp is a portable, stand-alone threshold ramp featuring independently adjustable legs with swivel feet, allowing for vertical adjustment ranging from 1.375" to 5.875" in height. This self-supporting aluminum threshold ramp is ideal for doorways that swing in and out, uneven surfaces, or single-step rises. Browse through the tabs to learn more about the Angled Entry Ramp.
|
EXTRUDED TREAD SURFACE Offers slip resistance to ensure traction in any weather. |
 |
|
ADJUSTABLE LEGS WITH SWIVEL FEET Allows for approximately 2 inches of vertical adjustments. The legs adjust independently, making the Angled Entry Ramp the perfect solution for uneven surfaces. |
 |
|
HIGH-STRENGTH ALUMINUM MATERIALS This ramp is made completely out of high-strength aluminum which will not rust or corrode over time. |
 |
|
PRE-DRILLED SLOTS Holes are pre-drilled for anchoring. Hardware included. |
 |
| 12" Ramp | 24" Ramp | 36" Ramp |
|
| Material | Aluminum | Aluminum | Aluminum |
| Surface | Slip Resistant | Slip Resistant | Slip Resistant |
| Dimensions | 11.877" x 36.25" |
23.875" x 36.25" |
35.904" x 36.25" |
| Usable Height Range W/ 1" Swivel Feet |
1.92" to 2.98" |
N/A | N/A |
| Usable Height Range W/ 1.5" Swivel Feet | N/A | 2.154" to 3.375" |
N/A |
| Usable Height Range W/ 2.5" Swivel Feet | N/A | N/A |
3.681" to 5.836" |
| Weight | 5.15 Lbs. |
10.4 Lbs. |
15.15 Lbs. |
| Weight Capacity |
700 Lbs. |
700 Lbs. | 700 Lbs. |
| For Wheelchairs and Scooters |
Yes | Yes | Yes |
| For Residential Use |
Yes | Yes | Yes |
| Warranty | Lifetime | Lifetime | Lifetime |
| Degree incline |
ramp length(ft) |
Suggested usage |
|---|---|---|
| 4.8 Degree 1:12 |
Feet
Shop |
Guidelines set by the Americans With Disabilities Act (ADA), ensuring they adhere to the standard lengths required for safety and accessibility |
| 7 Degree 1:8 |
Feet
Shop |
Optimized for self-reliant wheelchair navigators and their helpers |
| 10 Degree 1:6 |
Feet
Shop |
Accommodates manual wheelchairs with dependable attendant support and is also ideal for all types of power wheelchairs and scooters. |
| 12 Degree 1:4 |
Feet
Shop |
Perfect for both high-independence devices like power wheelchairs and scooters, and manual chairs with strong attendant aid. |
| 15 Degree 1:3 |
Feet
Shop |
Designed exclusively for unoccupied wheelchair transport, ideal for streamlined loading and unloading in confined areas. |
